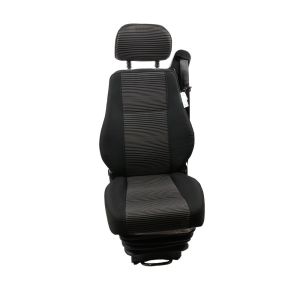

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Ask Lasest Price
Brand Name :	HWHongRV
Model Number :	HT911-50
Supply Ability :	3000 Piece/Pieces per Month
Price :	$450.00/sets 1-9 sets

Add to Cart

Product Details
Company Profile

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

Specification

* Seat size: (L×W×H) 630×540×1160
* Weight adjustment: Left hand side adjuster, (right hand side adjuster and front adjuster are optional)adjust range 40-130Kg
* Backrest adjustment: left adjust (right adjuster is optional), 80+41°
* Head restraint adjustment: adjust range 75mm (25mm×3)
* Height / rake adjustment: Left hand side adjuster, (right hand side adjuster is optional), front end 7 levels height adjust
range 65mm; rear end 7levels height adjust range 65mm ,the front and rear ends are matched with adjustable seat cushion ,rake
adjustable ±14°
* Mechanical suspension function: stroke ±30mm
* Horizontal adjustment: stroke 0±120mm
* Cushion height (working state) 295mm Cushion width 495mm Cushion depth 465mm

High backrest 895mm
* Wear a rubber dust cover under the cushion
* With seat belt fixing points, the three-point seat belt can be arranged on the seat as a whole, and the height of the retractor
can be appropriately increased (or rear-mounted) to meet the special needs of vehicle layout
* Fabric: Black imitation leather, other fabrics are optional
* Connect size:（F/B×L/R）（280*216mm）or (295.5*216mm )

·Optional: handrails (single and double); pneumatic (electric) massage; electric heating; ventilation;

Product Description

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. we can also pack it as your requirement.
Q2. What is your terms of delivery?
A: EXW,FOB or CIF according to the different conditon.
Q3. How about your delivery time?
A: Generally, it will take 1 to 50 days after receiving your payment, we always has goods in rich stock,but specific delivery time
depends on the items and the quantity of your order.
Q4. What is your terms of payment?
A: As for the big amount,T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.what is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

7 levels Height rake and Backrest adjustment Heavy truck mechanical suspension seat
